Viscoelastic complex modulus of a bituminous mixture

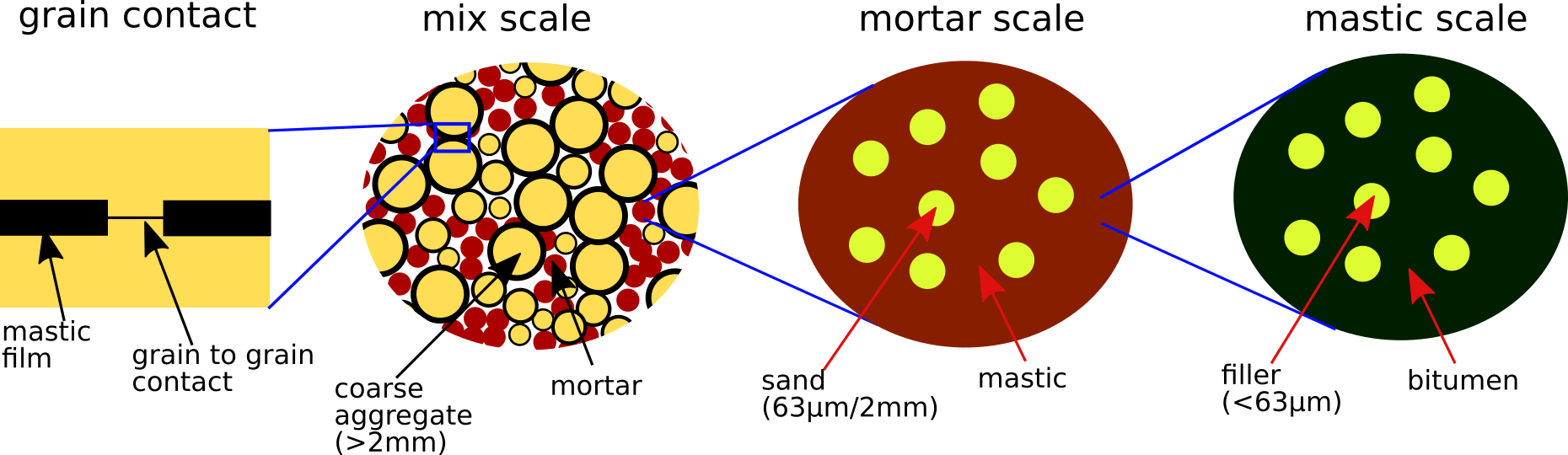

The complex modulus $E^*(\omega)$ of a bituminous mixture through three nested scales, following [69]. The bitumen is viscoelastic (2S2P1D); the mineral phases are elastic. Every scheme being ComplexF64-safe, the correspondence principle amounts to running the homogenization with complex-valued stiffnesses.

The coarse aggregates are coated grains — a stiff core wrapped in a thin mastic film — represented by a two-layer LayeredSphere that enters the self-consistent scheme through its concentration tensors (the composite-sphere support introduced for the cement-paste chapters, here with complex moduli).

2S2P1D binder model

The bitumen complex Young's modulus in the Laplace domain ($p = i\omega$):

\[E^*(p) = E_0 + \frac{E_\infty - E_0} {1 + \delta\,(p\tau_E)^{-k} + (p\tau_E)^{-h} + (p\beta\tau_E)^{-1}}.\]

using MeanFieldHom
using TensND
using LinearAlgebra
using Plots
gr()  # headless backend; GKSwstype is set to "100" in make.jl

struct Mod2S2P1D
    E0::Float64; Einf::Float64; δ::Float64; τE::Float64; k::Float64; h::Float64; β::Float64
end
(m::Mod2S2P1D)(p) = m.E0 + (m.Einf - m.E0) /
    (1 + m.δ * (p * m.τE)^(-m.k) + (p * m.τE)^(-m.h) + 1 / (p * m.β * m.τE))

# Hot-mix asphalt (HMA) — binders and experimental mix curves, ageing H0/H3/H9
E_BH0 = Mod2S2P1D(1e-7, 1000.0, 2.2, 1.94507827e-3, 0.22, 0.63, 50.0)
E_BH3 = Mod2S2P1D(1e-7, 1000.0, 2.12, 2.88910275e-3, 0.22, 0.611998586, 146.0)
E_BH9 = Mod2S2P1D(1e-7, 1000.0, 2.85, 7.07911122e-3, 0.22, 0.61430255, 178.0)
E_EH0 = Mod2S2P1D(86.3470095, 26000.0, 2.52254414, 0.834764484, 0.22, 0.65, 43.3031679)
E_EH3 = Mod2S2P1D(20.0, 24362.0, 2.6, 2.6604, 0.199, 0.65, 900.0)
E_EH9 = Mod2S2P1D(20.0, 24470.541, 2.73135009, 4.95748334, 0.175991713, 0.60, 900.0)

# Warm-mix asphalt (WMA) — binders and experimental mix curves, ageing W0/W3/W6
E_BW0 = Mod2S2P1D(1e-7, 1000.0, 3.12, 9.49532017e-3, 0.22, 0.608684147, 101.0)
E_BW3 = Mod2S2P1D(6.81e-6, 1000.0, 4.2, 3.209694e-2, 0.22, 0.55078753664, 393.0)
E_BW6 = Mod2S2P1D(2.1e-4, 1000.0, 4.6, 3.78112337e-1, 0.22, 0.555320631, 808.0)
E_EW0 = Mod2S2P1D(100.0, 21071.0, 2.4, 0.95, 0.207, 0.62, 9.45)
E_EW3 = Mod2S2P1D(57.0, 20974.0, 2.6, 7.3168, 0.199, 0.59, 900.0)
E_EW6 = Mod2S2P1D(100.0, 22290.0, 2.6, 89.095, 0.199, 0.59, 900.0)

Composition and volume fractions

The mix formula (mass fractions of the granular skeleton, bitumen mass fraction, and air voids) is converted to volume fractions through the phase densities.

compo_agg = Dict("6/10" => 0.2752, "4/6" => 0.1617, "2/4" => 0.1474,
    "sand" => 0.32285, "fines" => 0.0872)
size_agg = Dict("6/10" => 8.15, "4/6" => 5.15, "2/4" => 3.0)   # mean diameter (mm)

fmas = Dict{String,Float64}("bitume" => 0.054)
fvol0 = Dict{String,Float64}("pore" => 0.06)
ρ = Dict{String,Float64}(a => 2670.0 for a in keys(compo_agg))
ρ["bitume"] = 1040.0
for a in keys(compo_agg)
    fmas[a] = (1 - fmas["bitume"]) * compo_agg[a]
end
vtot = sum(fmas[a] / ρ[a] for a in keys(fmas))
for a in keys(fmas)
    fvol0[a] = (1 - fvol0["pore"]) * fmas[a] / ρ[a] / vtot
end
Dict(a => round(f, digits = 4) for (a, f) in fvol0)

Dict{String, Float64} with 7 entries:
  "4/6"    => 0.1332
  "6/10"   => 0.2267
  "sand"   => 0.266
  "pore"   => 0.06
  "bitume" => 0.1207
  "fines"  => 0.0718
  "2/4"    => 0.1214

Three-scale complex homogenization

The contact parameters $(\alpha, \chi, k_t)$ set the mastic-film thickness (Duriez law), the mixing between pure mastic and a contact-stiffened film, and the film out-of-plane stiffness. Given a binder model, the function returns $p \mapsto E^*(p)$. The coated aggregates are the complex two-layer LayeredSphere; the mix is closed with the self-consistent scheme.

const mod_agg, nu_agg, β0 = 9.5e4, 0.17, 0.51
const un = 1.0 + 0.0im

function Ehom(X, E_b)
    α, χ, kt = X
    Cagg = un * iso_stiffness_E_nu(mod_agg, nu_agg)
    fl = copy(fvol0)
    fmastic = fl["bitume"] + fl["fines"]
    e_film = Dict(a => α * 61.3e-3 * (size_agg[a] * 0.5)^β0 for a in keys(size_agg))
    ffilm = sum(fl[a] * ((1 + e_film[a] / (size_agg[a] * 0.5))^3 - 1) for a in keys(size_agg))
    fl["mastic_rest"] = fmastic - ffilm
    for a in keys(size_agg)
        fl[a] *= (1 + e_film[a] / (size_agg[a] * 0.5))^3
    end
    k_B = 2500.0
    μ_B(p) = 3k_B / (9k_B / E_b(p) - 1)

    function f(p)
        Cb = iso_stiffness(ComplexF64(k_B), μ_B(p))
        # Scale 1 — mastic (MT)
        fmastic_ = fl["bitume"] + fl["fines"]
        m = RVE(:bitume)
        add_matrix!(m, Ellipsoid(1.0), Dict(:C => Cb))
        add_phase!(m, :fines, Ellipsoid(1.0), Dict(:C => Cagg); fraction = fl["fines"] / fmastic_)
        Cmastic = homogenize(m, MoriTanaka(), :C)
        # Scale 2 — mortar (MT)
        fmortar = fl["mastic_rest"] + fl["sand"]
        r = RVE(:mastic_rest)
        add_matrix!(r, Ellipsoid(1.0), Dict(:C => Cmastic))
        add_phase!(r, :sand, Ellipsoid(1.0), Dict(:C => Cagg); fraction = fl["sand"] / fmortar)
        Cmortar = homogenize(r, MoriTanaka(), :C)
        # Scale 3 — full mix (SC) with coated aggregates
        v = RVE(:mortar)
        add_matrix!(v, Ellipsoid(1.0), Dict(:C => Cmortar))
        for a in keys(size_agg)
            ka, _ = k_mu(Cagg)
            Cfilm = χ * Cmastic + (1 - χ) * iso_stiffness(ka, ComplexF64(e_film[a] * kt))
            ra = size_agg[a] * 0.5
            sphere = LayeredSphere((ra, ra + e_film[a]), (Cagg, Cfilm))
            add_phase!(v, Symbol(a), sphere, Dict(:C => Cagg); fraction = fl[a])
        end
        add_phase!(v, :pore, Ellipsoid(1.0), Dict(:C => un * TensISO{3}(0.0, 0.0));
            fraction = fl["pore"])
        return E_nu(homogenize(v, SelfConsistent(; abstol = 1e-10, maxiters = 100), :C))[1]
    end
    return f
end

The pre-calibrated contact parameters (from the COBYLA fit of the least-aged state in [57] — the calibration itself is not repeated here) are used directly. A check against the Echoes reference at four frequencies:

x_HMA = (5.866e-3, 0.9760, 6366.1)
Ef = Ehom(x_HMA, E_BH0)
for ω in (1e-3, 1e-1, 1e1, 1e2)
    z = Ef(im * ω)
    println("ω = ", rpad(ω, 7), "  |E*| = ", rpad(round(abs(z), digits = 1), 9),
        " MPa   δ = ", round(rad2deg(angle(z)), digits = 2), "°")
end

ω = 0.001    |E*| = 223.7     MPa   δ = 29.75°
ω = 0.1      |E*| = 3113.9    MPa   δ = 37.92°
ω = 10.0     |E*| = 9082.9    MPa   δ = 14.05°
ω = 100.0    |E*| = 12572.3   MPa   δ = 11.13°

These reproduce the Echoes values (|E*| ≈ 224 / 3114 / 9083 / 12572 MPa, δ ≈ 29.8 / 37.9 / 14.1 / 11.1°) to the SC convergence tolerance.

Contact-parameter calibration

The three contact parameters $(\alpha, \chi, k_t)$ are calibrated by minimizing the relative distance between the multi-scale model and the experimental master curve of the least-aged state,

\[J(\alpha,\chi,k_t) = \sum_\omega \left|1 - \frac{E_{\rm mod}(i\omega)}{E_{\rm 2S2P1D}(i\omega)}\right|^2,\]

subject to inequality constraints keeping the fit acceptable for the more-aged states. [69] minimize it with a derivative-free COBYLA routine; their parameters are used directly here rather than re-calibrated:

x_HMA = (5.866e-3, 0.9760, 6366.1)   # J = 4.10e-1
x_WMA = (4.165e-2, 0.9791, 3277.7)   # J = 2.39e-1

Master curves: binder amplification across ageing states

For each ageing state the binder stiffness (dashed) is amplified by roughly three decades to the mix modulus (solid); the mix phase angle stays below the binder's, reflecting the stiffening by the rigid granular skeleton. Markers are the experimental 2S2P1D master curves. The same plot_mix helper is reused for the hot-mix (HMA) and warm-mix (WMA) asphalts.

ωs = 10.0 .^ range(-3.5, 2.5; length = 22)
cols = (:black, :red, :blue)

function plot_mix(x_opt, states, title)
    pE = plot(; xscale = :log10, yscale = :log10, xlabel = "ω (rad/s)",
        ylabel = "|E*| (MPa)", legend = :bottomright, framestyle = :box)
    pδ = plot(; xscale = :log10, xlabel = "ω (rad/s)", ylabel = "δ (°)",
        legend = false, framestyle = :box)
    for ((name, E_b, E_e), c) in zip(states, cols)
        Em = Ehom(x_opt, E_b)
        plot!(pE, ωs, [abs(E_b(im * ω)) for ω in ωs]; ls = :dash, c = c, lw = 1.5, label = "binder $name")
        plot!(pE, ωs, [abs(Em(im * ω)) for ω in ωs]; c = c, lw = 2, label = "mix $name (model)")
        scatter!(pE, ωs, [abs(E_e(im * ω)) for ω in ωs]; c = c, ms = 2.5, markerstrokewidth = 0, label = "")
        plot!(pδ, ωs, [rad2deg(angle(E_b(im * ω))) for ω in ωs]; ls = :dash, c = c, lw = 1.5)
        plot!(pδ, ωs, [rad2deg(angle(Em(im * ω))) for ω in ωs]; c = c, lw = 2)
        scatter!(pδ, ωs, [rad2deg(angle(E_e(im * ω))) for ω in ωs]; c = c, ms = 2.5, markerstrokewidth = 0)
    end
    return plot(pE, pδ; layout = (1, 2), size = (980, 400), plot_title = title)
end

plot_mix(x_HMA, (("H0", E_BH0, E_EH0), ("H3", E_BH3, E_EH3), ("H9", E_BH9, E_EH9)),
    "Hot-mix asphalt (HMA) — model vs experiment")

plot_mix(x_WMA, (("W0", E_BW0, E_EW0), ("W3", E_BW3, E_EW3), ("W6", E_BW6, E_EW6)),
    "Warm-mix asphalt (WMA) — model vs experiment")

In both mixes the ageing states shift the master curve toward higher stiffness and lower phase angle as the binder hardens — the model tracks the experimental curves across the whole frequency range with a single calibrated parameter set per mix.
