Finite-element inclusions

When a morphology has no closed-form Eshelby solution, its response can be computed numerically and fed to the schemes through the custom-inclusion contract. MeanFieldHom ships one such inclusion: FEEllipticCrack, whose crack-opening-displacement tensor comes out of a Ferrite.jl solve.

using MeanFieldHom
import Ferrite, FerriteGmsh, Gmsh      # activates MeanFieldHomFerriteExt

Either backend serves it — import Gridap, GridapGmsh and backend = GridapBackend() instead. With neither loaded the type still exists, but every solve raises an informative error.

The method

The finite-size bias, the dipole correction and the 3 + 3 fixed point this type runs are stated once in The finite Eshelby cell with a corrected boundary condition. What that buys, measured, is in Validating a finite-element crack.

The mesh

A ball of matrix around an elliptical slit, refined in a torus hugging the crack front — where the displacement field has its square-root singularity — and coarsening to $R/3$ on the outer boundary.

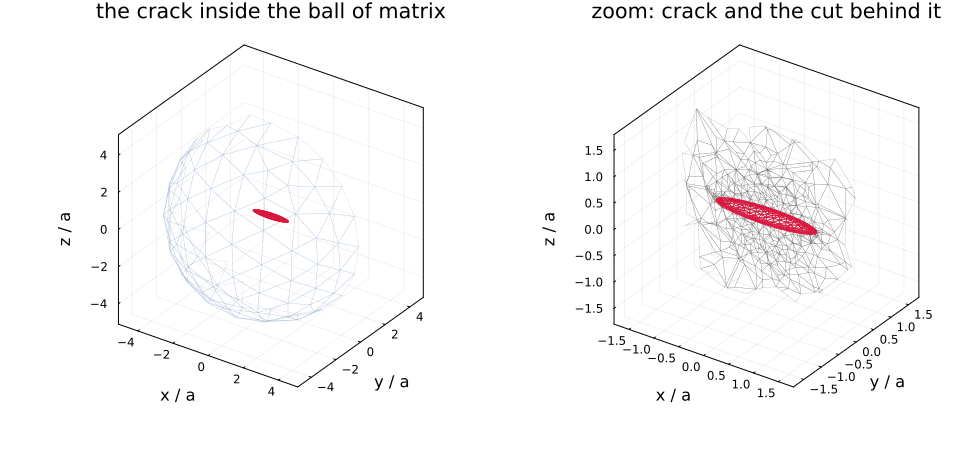

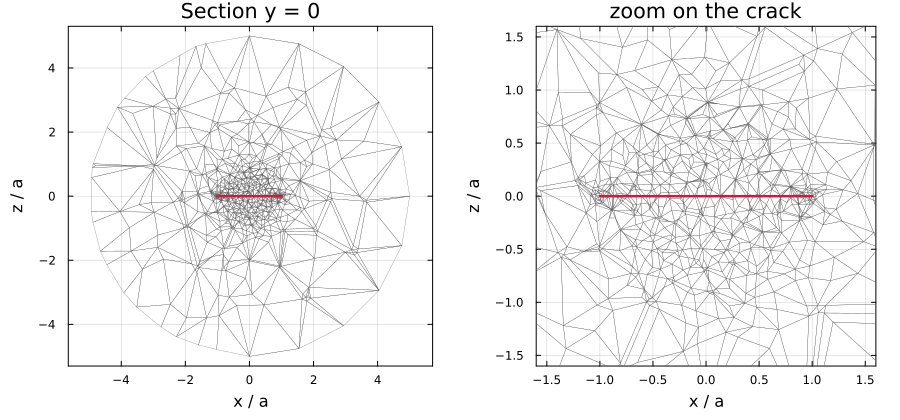

Left: the elliptical crack (red) suspended in the ball of matrix, whose far hemisphere is drawn in light blue — the crack is deliberately small, since $R = 5a$. Right: a zoom, with the $y = 0$ cut face behind the crack exposing how the tetrahedra grade from $h = b/12$ at the front out to the coarse far field.

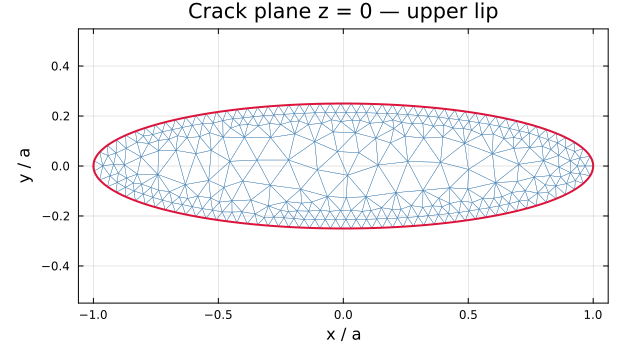

The upper lip seen from $+z$, with the exact ellipse in red. Elements shrink towards the front.

Two details are worth stating, because both cost real debugging time in the SifAniso study this is ported from:

• the crack disc is embeded in the ball, never fragmented — fragment would cut the ball into two disjoint half-balls;
• gmsh's Crack plugin duplicates the nodes of the crack front as well as those of the lips, in spite of OpenBoundaryPhysicalGroup (still true in gmsh 4.15). Left alone the crack is effectively half an element larger than requested and the opening is overestimated by 10–20 %. The front is therefore welded back together after import, which is also why the tetrahedra stay geometrically straight: setOrder(2) runs after the plugin and curves the two lips' front edges differently, pulling the welded front apart again at the mid-side nodes.

Straight tetrahedra with a P2 displacement field, then — subparametric, and capped at P2 because Ferrite provides no cubic Lagrange element on tetrahedra.

Using it

crack = FEEllipticCrack(1.0, 0.25; htipdiv = 12.0)

C₀ = iso_stiffness(0.8333, 0.3846)                 # E = 1, ν = 0.3
B_fe = cod_tensor(crack, C₀)
B_an = cod_tensor(EllipticCrack(1.0, 0.25), C₀)    # closed form, for comparison

rve = RVE(:M)
add_matrix!(rve, Ellipsoid(1.0), Dict(:C => C₀))
add_phase!(rve, :cracks, crack, Dict(:C => C₀); density = 0.05,
           symmetrize = IsoSymmetrize())
homogenize(rve, MoriTanaka(), :C)

That is the point of the contract: only cod_tensor is implemented, and because the type subtypes AbstractCrack with a standard shape_trait, ℍ, ℕ, 𝐑, 𝐍K, the bundled pair and the four `delta*with their Budiansky4\pi/3` prefactor all follow. Orientation averaging is applied by the scheme afterwards.

Discretization

FEMeshOptions — passed as keywords to the constructor:

Diagnostics

fe_mesh_report(crack)         # cells, dofs, welded front pairs, lip areas vs πab
fe_cod_breakdown(crack, C₀)   # B_s, B_u, B_inf — bypasses the cache
fe_assembly_count(crack)      # factorizations actually performed
fe_reset!(crack)              # drop the mesh and the memoized tensors

Cost and memoization

One evaluation is one assembly, one factorization and six solves. Results are memoized on the reference medium expressed in the crack's own frame, which has a useful consequence: a whole family of orientations of the same crack in the same isotropic matrix shares a single finite-element resolution.

One-shot schemes (Dilute, MoriTanaka, Maxwell, PonteCastanedaWillis) therefore cost exactly one solve — including under IsoSymmetrize over an orientation distribution. Iterative schemes (SelfConsistent, DifferentialScheme) change the reference medium at every step and pay one solve per distinct C₀: usable, but expensive (8 assemblies for a typical self-consistent run).

Limitations

• Isotropic matrix only — the corrected boundary condition uses the closed-form Kelvin dipole. An anisotropic C₀ raises an ArgumentError.
• Elasticity only — the transport problem would need its own finite-element resolution.
• No automatic differentiation through the solve: the sparse factorization is Float64-only. Use finite differences for sensitivities.
• P2 maximum on tetrahedra (Ferrite provides no cubic Lagrange element there).

These, along with the general 6 + 6 scheme for solid inclusions (the excentered-core sphere of the 2017 paper) and Fourier axisymmetric elements, are tracked in docs/src/developer/roadmap.md.

Reproducing this page

julia scripts/fe/make_doc_figures.jl     # figures + docs/src/assets/fe/results.md
julia scripts/81_fe_crack_eshelby.jl     # the validation, live
julia scripts/82_fe_crack_schemes.jl     # the crack inside the schemes

See also

• A recycled-concrete aggregate — the same correction on a solid inclusion, in its general polarization-fixed-point form, on a two-dimensional axisymmetric Fourier mesh.
• Custom inclusions — the contract this implements.
• Adding a new inclusion — the full developer contract.
