Transport properties

Transport properties — diffusivity, permeability, thermal or electrical conductivity — are described by 2nd-order symmetric tensors. They are homogenized with exactly the same machinery as 4th-order elastic properties: only the property key passed to homogenize changes.

Homogenizing a 2nd-order property

A property is stored in each phase under a symbol key — :C for stiffness, :K for conductivity/diffusivity — and selected at homogenization time:

using MeanFieldHom
using TensND
using LinearAlgebra
using Plots
gr()  # headless backend; GKSwstype is set to "100" in make.jl

# Isotropic diffusivities: 2nd-order isotropic tensors.
D_solid = TensISO{3}(0.1)
D_pore = TensISO{3}(1.0)

rve = RVE(:SOLID)
add_matrix!(rve, Ellipsoid(1.0, 1.0, 1.0), Dict(:K => D_solid))
add_phase!(
    rve, :PORE, Ellipsoid(1.0, 1.0, 0.1), Dict(:K => D_pore);
    fraction = 0.2, symmetrize = IsoSymmetrize()
)

D_eff = homogenize(rve, MoriTanaka(), :K)
tr(Array(D_eff)) / 3
0.19065028014161733

TensISO{3}(k) builds the isotropic 2nd-order tensor $k\,\mathbf{1}$; note the single argument, against two ($\alpha, \beta$) for a 4th-order isotropic stiffness.

The scheme is a free parameter, exactly as in elasticity:

for scheme in (Dilute(), MoriTanaka(), SelfConsistent())
    D = homogenize(rve, scheme, :K)
    println(rpad(string(nameof(typeof(scheme))), 16), tr(Array(D)) / 3)
end
Dilute          0.18064276801551857
MoriTanaka      0.19065028014161733
SelfConsistent  0.1994431324590776

The self-consistent estimate sits above Mori-Tanaka here because the conductive pores percolate in the SC topology, while MT keeps them isolated in a continuous, poorly conductive solid.

Diffusivity of a porous medium

The effective diffusivity of a porous material depends strongly on pore shape, not only on porosity. Flat pores (small aspect ratio $\omega$) are far more efficient at connecting the medium, per unit volume, than spherical ones.

function D_eff_porous(φ, ω; scheme = SelfConsistent())
    r = RVE(:SOLID)
    add_matrix!(r, Ellipsoid(1.0, 1.0, 1.0), Dict(:K => TensISO{3}(0.1)))
    add_phase!(
        r, :PORE, Ellipsoid(1.0, 1.0, ω), Dict(:K => TensISO{3}(1.0));
        fraction = φ, symmetrize = IsoSymmetrize()
    )
    return tr(Array(homogenize(r, scheme, :K))) / 3
end

φs = 0.0:0.15:0.6
println("  φ   ", join(["  ω=$ω" for ω in (0.01, 0.1, 1.0, 10.0)]))
for φ in φs
    vals = [D_eff_porous(φ, ω) for ω in (0.01, 0.1, 1.0, 10.0)]
    println(rpad(φ, 6), join([rpad(round(v, digits = 4), 8) for v in vals]))
end
  φ     ω=0.01  ω=0.1  ω=1.0  ω=10.0
0.0   0.1     0.1     0.1     0.1
0.15  0.186   0.171   0.1457  0.1632
0.3   0.2811  0.2642  0.2261  0.2502
0.45  0.3945  0.3816  0.3503  0.3679
0.6   0.5312  0.5243  0.5084  0.5161

The same sweep, plotted as effective diffusivity against porosity for a range of pore aspect ratios $\omega$:

φ_plot = 0.0:0.02:0.6
plt = plot(;
    xlabel = "porosity φ", ylabel = "effective diffusivity D_eff",
    legend = :topleft, framestyle = :box, size = (760, 480),
)
for ω in (0.01, 0.1, 1.0, 10.0)
    plot!(plt, φ_plot, [D_eff_porous(φ, ω) for φ in φ_plot]; label = "ω = $ω", lw = 2)
end
plt

At a given $\varphi$ the oblate curve sits well above the others: a thin disc bridges a larger span of the microstructure than a compact inclusion of the same volume.

Two limits are worth checking. At zero porosity every curve must return the solid diffusivity, and at $\omega = 1$ (spherical pores) the self-consistent estimate must reproduce the classical Bruggeman result — the root of

\[\varphi \, \frac{D_p - D}{D_p + 2D} + (1-\varphi) \, \frac{D_s - D}{D_s + 2D} = 0 .\]

# Plain bisection — no extra dependency needed.
function bruggeman(φ; Ds = 0.1, Dp = 1.0)
    f(D) = φ * (Dp - D) / (Dp + 2D) + (1 - φ) * (Ds - D) / (Ds + 2D)
    lo, hi = 1.0e-12, 10.0
    for _ in 1:200
        mid = (lo + hi) / 2
        f(lo) * f(mid) <= 0 ? (hi = mid) : (lo = mid)
    end
    return (lo + hi) / 2
end

for φ in (0.2, 0.4, 0.6)
    sc = D_eff_porous(φ, 1.0)
    br = bruggeman(φ)
    println("φ = ", φ, "   SC = ", round(sc, digits = 8),
        "   Bruggeman = ", round(br, digits = 8),
        "   |Δ| = ", round(abs(sc - br), sigdigits = 3))
end
φ = 0.2   SC = 0.16786262   Bruggeman = 0.16786262   |Δ| = 2.27e-10
φ = 0.4   SC = 0.30430749   Bruggeman = 0.30430749   |Δ| = 3.25e-10
φ = 0.6   SC = 0.50835623   Bruggeman = 0.50835623   |Δ| = 2.3e-10

The two agree to $3\times10^{-10}$, i.e. to the tolerance of the self-consistent fixed point — a non-trivial check that the 2nd-order SC scheme reproduces the classical effective-medium result for spherical inclusions.

Anisotropy induced by oriented pores

If the pores are not re-oriented isotropically, the effective diffusivity inherits their symmetry. Dropping symmetrize = IsoSymmetrize() leaves all pores aligned on $e_3$, and the effective tensor becomes transversely isotropic:

r = RVE(:SOLID)
add_matrix!(r, Ellipsoid(1.0, 1.0, 1.0), Dict(:K => TensISO{3}(0.1)))
add_phase!(
    r, :PORE, Ellipsoid(1.0, 1.0, 0.05), Dict(:K => TensISO{3}(1.0));
    fraction = 0.15
)

D_aniso = Array(homogenize(r, MoriTanaka(), :K))
(D_11 = D_aniso[1, 1], D_33 = D_aniso[3, 3])
(D_11 = 0.20527498300671998, D_33 = 0.11669699311419938)

The oblate pores lie in the $(e_1, e_2)$ plane, so they short-circuit in-plane transport ($D_{11}$ large) while barely helping through-thickness transport ($D_{33}$ close to the solid value).

Sweeping the porosity makes the induced anisotropy explicit — the in-plane and through-thickness diagonal components fan apart as $\varphi$ grows:

function D_aniso_components(φ; ω = 0.05)
    r = RVE(:SOLID)
    add_matrix!(r, Ellipsoid(1.0, 1.0, 1.0), Dict(:K => TensISO{3}(0.1)))
    add_phase!(
        r, :PORE, Ellipsoid(1.0, 1.0, ω), Dict(:K => TensISO{3}(1.0));
        fraction = φ
    )
    D = Array(homogenize(r, MoriTanaka(), :K))
    return D[1, 1], D[3, 3]
end

φ_plot = 0.0:0.01:0.3
D11 = [D_aniso_components(φ)[1] for φ in φ_plot]
D33 = [D_aniso_components(φ)[2] for φ in φ_plot]
plt2 = plot(;
    xlabel = "porosity φ", ylabel = "effective diffusivity",
    legend = :topleft, framestyle = :box, size = (760, 480),
)
plot!(plt2, φ_plot, D11; label = "D₁₁ (in-plane)", lw = 2)
plot!(plt2, φ_plot, D33; label = "D₃₃ (through-thickness)", lw = 2, ls = :dash)
plt2

Effect of the Interfacial Transition Zone (ITZ)

In mortar, the Interfacial Transition Zone is a thin shell (~50 µm) of higher-porosity — hence higher-diffusivity — cement paste around each aggregate. The reduction in diffusivity caused by the impermeable aggregates can be offset, or even reversed, by this more permeable surrounding shell.

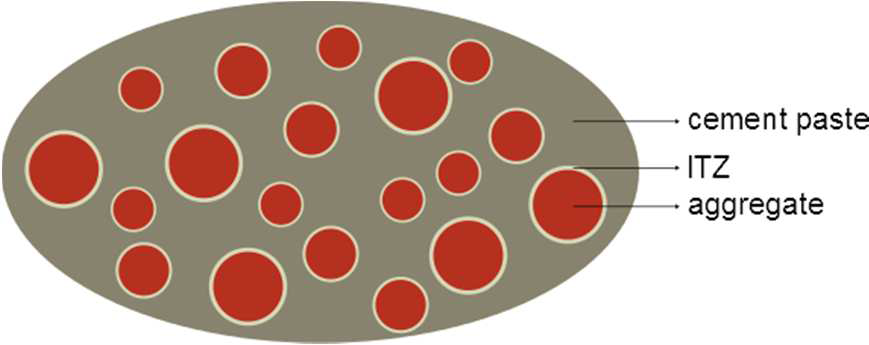

RVE of a mortar: cement paste matrix with aggregate particles coated by ITZ shells (from the Echoes book [echoes](@cite)).

The aggregate + ITZ is a two-layer LayeredSphere — an impermeable core ($D = 0$, radius $R_{\rm agg}$) inside an ITZ shell (thickness $e_{\rm ITZ}$) — embedded in the cement-paste matrix of reference diffusivity $D_{cp} = 1$ and homogenized by Mori-Tanaka. Because the composite-sphere inclusion covers aggregate and shell, its volume fraction exceeds the bare-aggregate fraction $f$: $f_{\rm inc} = f\,(1 + e_{\rm ITZ}/R_{\rm agg})^3$.

const Ragg, eITZ = 5.0e3, 50.0    # µm

function D_itz(f, d_itz)
    f_inc = f * (1 + eITZ / Ragg)^3
    r = RVE(:CEMENT)
    add_matrix!(r, Ellipsoid(1.0), Dict(:K => TensISO{3}(1.0)))
    agg = LayeredSphere((Ragg, Ragg + eITZ), (TensISO{3}(0.0), TensISO{3}(d_itz)))
    add_phase!(r, :AGG, agg, Dict(:K => TensISO{3}(1.0)); fraction = f_inc)
    return tr(Array(homogenize(r, MoriTanaka(), :K))) / 3
end

# spot values reproduce the Echoes reference exactly
[round(D_itz(0.2, d), digits = 4) for d in (0.001, 50.0, 100.0)]
3-element Vector{Float64}:
 0.7198
 0.9979
 1.1604

Sweeping the aggregate fraction for a range of ITZ-to-paste diffusivity ratios $D_{\rm itz}/D_{cp}$, against the two classical bounds for purely impenetrable spheres ($(1-f)^{3/2}$ and the Maxwell form $(1-f)/(1+f/2)$):

fs = range(0.001, 0.85; length = 40)
plt3 = plot(; xlabel = "aggregate fraction f", ylabel = "D_eff / D_cp",
    legend = :topright, framestyle = :box, ylims = (0, 2), size = (760, 480))
for d in (100.0, 60.0, 50.0, 40.0, 20.0, 0.001)
    lbl = d ≥ 1 ? "D_itz/D_cp = $(Int(d))" : "D_itz/D_cp = 0"
    plot!(plt3, fs, [D_itz(f, d) for f in fs]; lw = 2, label = lbl)
end
plot!(plt3, fs, [(1 - f)^1.5 for f in fs]; c = :black, ls = :dash, label = "(1-f)^{3/2}")
plot!(plt3, fs, [(1 - f) / (1 + 0.5f) for f in fs]; c = :black, ls = :dot, label = "(1-f)/(1+f/2)")
plt3

The role of the aggregate + ITZ composite depends strongly on $D_{\rm itz}/D_{cp}$: an impermeable ITZ ($\ll 1$) drives $D^{\rm hom}$ below both impenetrable-sphere bounds; near $D_{\rm itz}/D_{cp} \approx 50$ the two effects nearly cancel and $D^{\rm hom} \approx D_{cp}$; a highly permeable ITZ ($\gg 1$) turns the shells into a connected fast-transport network that lifts $D^{\rm hom}$ above the neat paste value.

Zero-thickness interface (DUALDISC)

In the limit $e_{\rm ITZ}\to 0$ the thin, highly-conductive ITZ shell can be collapsed onto a zero-thickness surface-conductive interface carrying a tangential surface current $\mathbf q_s = k_s\,\nabla_{\!s}T$ with transmissivity $k_s = \alpha = D_s\,e_{\rm ITZ}$ — the Echoes book's DUALDISC model. This is exactly a SurfaceConductiveInterface on a bare aggregate (a one-layer LayeredSphere); it avoids the explicit shell and its volume-fraction correction $f\,(1+e_{\rm ITZ}/R_{\rm agg})^3$:

function D_dualdisc(f, d_itz)
    α = d_itz * eITZ                                   # transmissivity D_s·e
    agg = LayeredSphere((Ragg,), (TensISO{3}(0.0),);
        interfaces = (SurfaceConductiveInterface(α),))
    r = RVE(:CEMENT)
    add_matrix!(r, Ellipsoid(1.0), Dict(:K => TensISO{3}(1.0)))
    add_phase!(r, :AGG, agg, Dict(:K => TensISO{3}(1.0)); fraction = f)
    return tr(Array(homogenize(r, MoriTanaka(), :K))) / 3
end

# D_itz/D_cp = 50 makes the surface current exactly offset the impermeable core
[round(D_dualdisc(f, 50.0), digits = 6) for f in (0.1, 0.5, 0.9)]
3-element Vector{Float64}:
 1.0
 1.0
 1.0

The surface-conductive interface reproduces the Echoes DUALDISC diffusivity to machine precision, and agrees with the explicit two-layer model up to the small $\approx 3\%$ ITZ volume that the interface idealization neglects:

plt4 = plot(; xlabel = "aggregate fraction f", ylabel = "D_eff / D_cp",
    legend = :topleft, framestyle = :box, ylims = (0, 2), size = (760, 480))
for (d, c) in ((100.0, 1), (50.0, 2), (20.0, 3))
    plot!(plt4, fs, [D_itz(f, d) for f in fs]; lw = 2, c = c,
        label = "layer model — D_itz/D_cp = $(Int(d))")
    plot!(plt4, fs, [D_dualdisc(f, d) for f in fs]; lw = 2, c = c, ls = :dash,
        label = "DUALDISC — D_itz/D_cp = $(Int(d))")
end
plt4

At $D_{\rm itz}/D_{cp} = 50$ the transmissivity $k_s = 2500$ gives an effective sphere conductivity $2k_s/R_{\rm agg} = 1 = D_{cp}$, so the aggregate becomes transparent and $D^{\rm hom} = D_{cp}$ at every fraction — the flat curve above.

Cross-property coupling

Because a single RVE carries several property keys at once, the same microstructure can be homogenized for stiffness and for transport without being rebuilt — which is the basis of cross-property correlations [46]:

r2 = RVE(:SOLID)
add_matrix!(
    r2, Ellipsoid(1.0, 1.0, 1.0),
    Dict(:C => TensISO{3}(30.0, 12.0), :K => TensISO{3}(0.1))
)
add_phase!(
    r2, :PORE, Ellipsoid(1.0, 1.0, 0.1),
    Dict(:C => TensISO{3}(1.0e-9, 1.0e-9), :K => TensISO{3}(1.0));
    fraction = 0.15, symmetrize = IsoSymmetrize()
)

C_eff = homogenize(r2, MoriTanaka(), :C)
D_eff2 = homogenize(r2, MoriTanaka(), :K)
(bulk = k_mu(C_eff)[1], diffusivity = tr(Array(D_eff2)) / 3)
(bulk = 4.07913658548325, diffusivity = 0.16594191441863304)
