Steady Infiltration Above a Water Table ​

The unsaturated counterpart of the poroelasticity benchmarks. Terzaghi and Mandel verify the coupled mechanics; this one verifies the Richards path — the retention and relative permeability curves of the constitutive layer, the VoronoiFVM flux with gravity, and the ability to reach a steady state — against a solution that can be written down exactly.

Why this case has a closed form ​

Richards' equation is nonlinear because depends on the unknown. For Gardner's exponential law (Gardner, 1958) the nonlinearity is removable: a change of variable turns the steady equation into a linear first-order ODE.

Take upward,   so that   , and write the vertical Darcy flux (positive upward) as

At steady state is constant through the column. With     and the substitution  ,

which is linear in . Integrating from a water table at   where  , hence  :

is the flux scaled by the saturated gravity-driven flux; it is negative for downward infiltration. For upward flux (evaporation) the bracket vanishes at a finite height — the water table can only sustain evaporation up to that depth — which is the physical content of Gardner's original paper.

julia
include("richards_common.jl")

Solving ​

The column is marched from hydrostatic equilibrium until the profile stops moving. The storage term is what makes that march possible; at the steady state it drops out, which is why the answer depends on the relative permeability alone.

julia
"""
    run_gardner(; m, N, t_end, n_save)

Return `(m, z, p_l)`: the node heights and the steady liquid pressure profile.
"""
function run_gardner(; m = GardnerColumn(), N = 200, t_end = 4.0e7, n_save = 40)
    grid = simplexgrid(range(0.0, m.L; length = N + 1))
    sys = fvm_system(m, grid)

    # Start from hydrostatic equilibrium, p_l = -ρ g z, which is the zero-flux profile.
    inival = unknowns(sys)
    z0 = grid[Coordinates][1, :]
    inival[1, :] .= -m.rho_l * abs(m.gravite) .* z0
    inival[1, 1] = m.p_g

    ctrl = VoronoiFVM.SolverControl(;
        Δt = 1.0,
        Δt_max = t_end / 20,
        Δu_opt = 2.0e3,
        reltol = 1.0e-9,
        abstol = 1.0e-11,
        handle_exceptions = true,
        verbose = false,
    )

    tsol = solve(sys; inival, times = range(0.0, t_end; length = n_save + 1), control = ctrl)
    return m, z0, tsol[1, :, end], tsol
end

model, z, p_num, tsol = run_gardner()
(Main.GardnerColumn{Gardner{Float64}, GardnerKrl{Float64}}(1.0e-12, 0.001, 1000.0, -9.81, 0.35, 0.0, 0.0005, -2.0e-7, 2.0, Gardner{Float64}(0.0005), GardnerKrl{Float64}(0.0005)), [0.0, 0.01, 0.02, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09  …  1.91, 1.92, 1.93, 1.94, 1.95, 1.96, 1.97, 1.98, 1.99, 2.0], [2.0e-37, -96.05139304335133, -192.00205363665168, -287.8471449459521, -383.58160957412747, -479.20016067494015, -574.6972728281845, -670.0671726824656, -765.3038293739888, -860.4009447317621  …  -7777.501550946243, -7777.892357088296, -7778.264524080295, -7778.61893767341, -7778.956441827587, -7779.277840655311, -7779.583900277593, -7779.875350595877, -7780.1528869834565, -7780.417171899866], [0.0 -98.10000000000001 … -19521.9 -19620.0;;; 3.720787473188021e-56 -98.10000000000001 … -19347.896347602607 -17504.30950849121;;; 3.049819943726031e-56 -98.10000000000001 … -19092.51319093697 -16607.434775196496;;; … ;;; 2.0e-37 -96.05139304335133 … -7780.1528869834565 -7780.417171899866;;; 2.0e-37 -96.05139304335133 … -7780.1528869834565 -7780.417171899866;;; 2.0e-37 -96.05139304335133 … -7780.1528869834565 -7780.417171899866])

Results ​

julia
using Plots

p_ref = [gardner_profile(model, zi) for zi in z]

err_L2 = norm(p_num .- p_ref) / norm(p_ref)
err_Linf = maximum(abs.(p_num .- p_ref))

Q = model.q_top / (saturated_conductivity(model) * model.rho_l * abs(model.gravite))
@printf("Gardner α        : %.3e Pa⁻¹\n", model.alpha)
@printf("Scaled flux Q    : %.6f   (negative = downward infiltration)\n", Q)
@printf("p_l at the top   : %.4e Pa   (reference %.4e Pa)\n", p_num[end], p_ref[end])
@printf("relative L2 error: %.3e\n", err_L2)
@printf("L∞ error         : %.4f Pa\n", err_Linf)
Gardner α        : 5.000e-04 Pa⁻¹
Scaled flux Q    : -0.020387   (negative = downward infiltration)
p_l at the top   : -7.7804e+03 Pa   (reference -7.7804e+03 Pa)
relative L2 error: 8.709e-06
L∞ error         : 0.1015 Pa

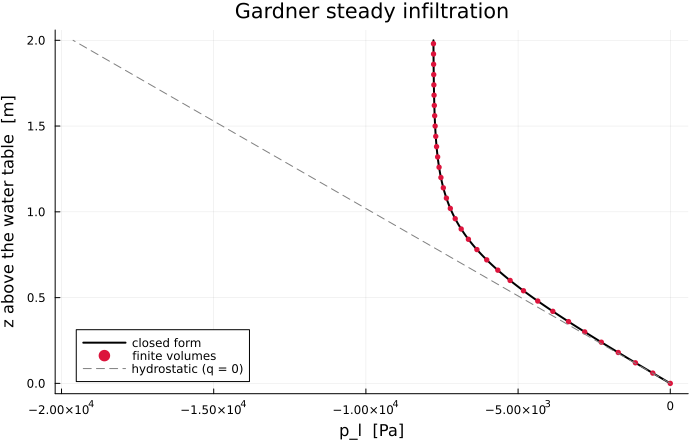

Steady profile ​

julia
plt = plot(;
    xlabel = "p_l  [Pa]", ylabel = "z above the water table  [m]",
    title = "Gardner steady infiltration",
    legend = :bottomleft, size = (700, 440),
)
zfine = range(0, model.L; length = 400)
plot!(plt, [gardner_profile(model, zi) for zi in zfine], zfine; lw = 2, color = :black, label = "closed form")
plot!(
    plt, p_num[1:6:end], z[1:6:end];
    seriestype = :scatter, ms = 3, mswidth = 0, color = :crimson, label = "finite volumes",
)
plot!(
    plt, -model.rho_l * abs(model.gravite) .* zfine, zfine;
    ls = :dash, color = :grey, label = "hydrostatic (q = 0)",
)
plt

Convergence with the mesh ​

Each halving of the mesh size divides the error by four: the two-point flux finite volume scheme is second order on a uniform grid, and the measurement says so to within 1 %.

julia
println("  nodes  |  relative L2 error |  ratio")
println("-"^42)
prev = NaN
for N in (25, 50, 100, 200, 400)
    mm, zz, pp, _ = run_gardner(; N = N)
    ref = [gardner_profile(mm, zi) for zi in zz]
    e = norm(pp .- ref) / norm(ref)
    @printf("  %5d  |     %.3e      |  %s\n", N + 1, e, isnan(prev) ? "—" : @sprintf("%.2f", prev / e))
    global prev = e
end
  nodes  |  relative L2 error |  ratio
------------------------------------------
     26  |     5.513e-04      |  —
     51  |     1.386e-04      |  3.98
    101  |     3.478e-05      |  3.99
    201  |     8.709e-06      |  3.99
    401  |     2.179e-06      |  4.00

Notes ​

  • The steady state does not depend on the retention curve — only on . The retention curve controls how the column gets there, not where it settles, which is why the closed form involves of the permeability alone.

  • Where the closed form stops existing — for upward flux the bracket    reaches zero at a finite height: a water table can only feed evaporation down to a limited depth. gardner_profile returns NaN there rather than pretending.

  • Not a fitting curve — Gardner's exponential law is chosen here because it makes the steady equation integrable, not because it describes real soils well. For those, VanGenuchten is the curve the other examples use.
