A blastfurnace cement, and the oxidation state it needs
A CEM III is between a third and four fifths blastfurnace slag. That single fact changes the calculation in three ways, and this page follows each:
the slag is a glass — it has no phases to name, so it enters as an oxide analysis rather than through a Bogue conversion;
it brings magnesium, which the clinker barely has, and magnesium makes hydrotalcite;
it brings sulfur as S(-II) into a pore solution whose sulfur is S(+VI), and a calculation that cannot hold both has decided the answer before it starts. That is what the oxidation state machinery is for.
using ChemistryLab
using DynamicQuantities
using OptimaSolver
using OrderedCollections
using Printf
using Plots
default(framestyle = :box, grid = false)
substances = build_species(datapath("cemdata18-thermofun.json"); verbose = false)
byname = Dict(symbol(s) => s for s in substances)┌───────────────────────────────────────────────────┐
│ Loading database: data/cemdata18-thermofun.json │
└───────────────────────────────────────────────────┘
┌────────────────────┐
│ Building species │
└────────────────────┘
Progress: 84%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████▉ | ETA: 0:00:00[K
Progress: 100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| Time: 0:00:00[K0. Why a glass is a different kind of input
A clinker phase has a formula.
Ground granulated blastfurnace slag is quenched molten slag: its atoms are frozen in a disordered network with no repeating unit, so there is no formula unit to name and no tabulated thermodynamic data for "slag". What a datasheet reports is an oxide analysis — how much CaO, SiO₂, Al₂O₃, MgO the material contains by mass — and nothing else.
That is enough, because a Gibbs minimization does not need to know what the starting material was. It needs the totals:
where
A clinker enters through its phases, which have formulas, and oxide_budget converts an oxide analysis into component totals, and the two contributions are simply added.
A budget says what a material CONTAINS, not what it does
A slag and a quartz sand of the same analysis give the same
So read this page as the limit the paste tends to, not as a 28-day specimen.
1. What is measured, and what is assumed

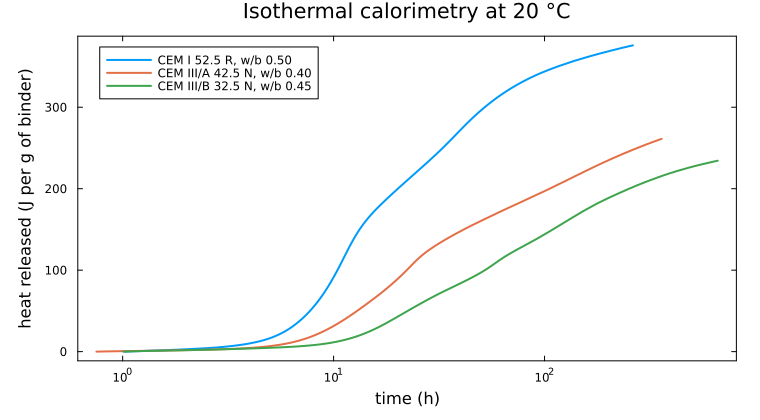

This page is built around a measured record: CEM III/A 42.5 N from Hranice, in the CC-BY-4.0 deposit of (Šmilauer and Reiterman, 2025). What that record gives, and what it does not, decides how the rest must be written.
rec = joinpath(datapath("experimental"), "smilauer2025-184-cemIII-A-42.5N-hranice.csv")
for line in eachline(rec)
startswith(line, "#") || break
occursin(r"cement:|blaine:|wb:|temperature:", line) && println(line)
end# cement: CEM III/A 42.5 N, Hranice
# blaine: 408 m2/kg
# wb: 0.40
# temperature: 20CThree numbers, all measured. The clinker phase composition and the actual slag content are not in the deposit, and nothing in it lets them be recovered. They have to be assumed, and the assumption is stated here rather than buried:
# ASSUMED, not measured: the midpoint of the EN 197-1 range for CEM III/A,
# which is 35-64 % clinker and 36-65 % slag.
CLINKER_FRACTION = 0.50
SLAG_FRACTION = 0.50
# ASSUMED: a Bogue composition representative of a CEM I clinker. The deposit
# does not report one for this cement.
CLINKER = OrderedDict("C3S" => 0.65, "C2S" => 0.11, "C3A" => 0.11, "C4AF" => 0.08)
# ASSUMED: a European ground granulated blastfurnace slag analysis. The sulfur
# is the part that matters here, and it is the part a datasheet reports least
# consistently.
SLAG = Dict("CaO" => 0.41, "SiO2" => 0.36, "Al2O3" => 0.11,
"MgO" => 0.08, "SO3" => 0.02)
# THE CLINKER'S ALKALIS, which Bogue does not account for and which set the pH.
#
# A Bogue calculation returns four phases and no sodium or potassium: they are
# minor oxides, a fraction of a percent, and they sit outside the four-phase
# decomposition. They are also, in a cement paste, **what fixes the pH** -- they
# dissolve almost completely into the pore solution and stay there, where the
# calcium is held down by portlandite at 12.5. Leaving them out does not make the
# calculation conservative: it makes it report a portlandite floor as though it
# were a pore solution.
#
# ASSUMED at a usual industrial level, as a fraction of the CLINKER mass.
ALKALIS = Dict("K2O" => 0.008, "Na2O" => 0.002)
WB = 0.40 # MEASURED, from the record above
BINDER_G = 100.0
# HOW MUCH REACTS. Two ceilings, and the reacted fraction is the lower.
#
# The WATER ceiling is Powers (1948): about 0.42 g of water per gram of cement
# is needed for complete hydration -- 0.23 g written into the hydrate formulae
# and 0.19 g held in the gel pores those hydrates create. Below that the paste
# stops WITH WATER STILL IN IT, what remains being in pores far too fine to
# reach an unhydrated grain. That argument is about the pore space and not about
# the grain, so it caps the slag exactly as it caps the alite. Water curing
# moves it to 0.36, the volume emptied by chemical shrinkage being refilled from
# outside -- `powers_alpha_max(WB; curing = :saturated)`.
ALPHA_WATER = powers_alpha_max(WB) # sealed, ASSUMED
# The KINETIC ceiling is the slag's own dissolution rate, and at 28 days it is
# the lower of the two by a wide margin. The RILEM TC 238-SCM round robin
# [Durdzinski2017](@cite) measured two ground granulated slags at 40 %
# replacement and w/b 0.40 in seven laboratories -- this page's geometry. Its
# Table 4 at 28 days, by SEM image analysis, the technique the study found most
# consistent: 38 % and 48 % for the first slag, 45 % and 49 % for the second.
# The study's verdict on the precision of any technique: "at best +/- 5 %".
#
# ASSUMED from that table. [The CEM V page](@ref cem5-dor) sweeps the same
# quantity across the round robin's 7-, 28- and 90-day columns.
ALPHA_SLAG = min(0.45, ALPHA_WATER)
ALPHA_CLINKER = ALPHA_WATER
@printf("water ceiling at w/b = %.2f : %.3f\n", WB, ALPHA_WATER)
@printf("reacted: clinker %.0f %%, slag %.0f %%\n", 100ALPHA_CLINKER, 100ALPHA_SLAG)water ceiling at w/b = 0.40 : 0.952
reacted: clinker 95 %, slag 45 %Read the results as a family, not as this specimen
Everything below follows from those assumptions as much as from the thermodynamics. A different slag content inside the same EN 197-1 range moves the assemblage; a different clinker Bogue moves it again; and the reacted fractions move the amounts more than either. What the calculation shows is how a CEM III/A behaves, not what this particular cement from Hranice contains.
2. The slag enters as an element budget
There is no Species for a slag, because a glass has no formula. oxide_budget converts the analysis to the component totals the constraint A n = b is written over, computing every molar mass from its formula:
pure = split(
"C3S C2S C3A C4AF Gp Anh Cal Portlandite ettringite monosulphate12 " *
"monocarbonate hemicarbonate C4AH13 C3AH6 C3FH6 straetlingite " *
"hydrotalcite Mg2AlC0.5OH Brc FeOOHmic AlOHmic Amor-Sl Tro Py Sulfur Mgs"
)
solutions = [
"CSHQ" => ["CSHQ-JenD", "CSHQ-JenH", "CSHQ-TobD", "CSHQ-TobH", "KSiOH", "NaSiOH"],
"C3(AF)S0.84H" => ["C3AFS0.84H4.32", "C3FS0.84H4.32"],
]
members = reduce(vcat, last.(solutions))
# The sulfur ladder must be in the species list, or "holding both oxidation
# states" is a claim about species that are not there.
redox_species = ["HS-", "H2S@", "SO4-2", "SO3-2", "S2O3-2", "O2@", "H2@"]
species = speciation(substances, vcat(pure, members, redox_species);
aggregate_state = [AS_AQUEOUS])
ss = [SolidSolutionPhase(n, [byname[m] for m in ms]) for (n, ms) in solutions]
cs = ChemicalSystem(species, CEMDATA_PRIMARIES; solid_solutions = ss)
@printf("%d species, %d conservation components\n",
length(cs.species), size(cs.SM.A, 1))97 species, 12 conservation componentsThe component list is where the redox treatment announces itself. With sulfur at two oxidation states in the species list, charge is no longer a fixed combination of the element rows, so it survives as a component of its own:
components = String.(symbol.(cs.SM.primaries))
@printf("charge (`Zz`) kept as a conservation component: %s\n",
"Zz" in components ? "yes — the oxidation state is conserved" : "no")charge (`Zz`) kept as a conservation component: yes — the oxidation state is conserved3. The budget, clinker plus glass
molar_mass(n) = ustrip(us"g/mol", byname[n][:M])
"""
paste(; alkali = 1.0) -> (; state, clinker, slag, total)
The fresh state and the element budget, with `alkali` scaling the clinker's
sodium and potassium so that section 6 can sweep the one input that sets the pH.
The state carries only what has reacted. The rest -- unhydrated clinker cores and
undissolved glass -- is still in the specimen, and is no part of the
minimization: an intact grain is not at equilibrium with the solution around it.
All of the mixing water enters, though: the ceiling limits how far the reaction
can go, not how much water was poured in, and the water that cannot reach a grain
is still in the balance.
"""
function paste(; alkali = 1.0)
st = ChemicalState(cs)
for (phase, frac) in CLINKER
set_quantity!(st, phase,
ALPHA_CLINKER * BINDER_G * CLINKER_FRACTION * frac / molar_mass(phase) * u"mol")
end
set_quantity!(st, "H2O@", BINDER_G * WB / molar_mass("H2O@") * u"mol")
clinker = Float64.(cs.SM.A) * ustrip.(us"mol", st.n)
# The alkalis follow the clinker, and its reacted fraction: they leave the
# grain as it dissolves.
clinker .+= alkali * oxide_budget(ALKALIS, cs.SM.primaries;
mass = BINDER_G * CLINKER_FRACTION * ALPHA_CLINKER * u"g")
slag = oxide_budget(SLAG, cs.SM.primaries;
mass = BINDER_G * SLAG_FRACTION * ALPHA_SLAG * u"g")
return (; state = st, clinker, slag, total = clinker .+ slag)
end
p0 = paste()
state, b = p0.state, p0.total
for (comp, v) in zip(components, b)
abs(v) > 1.0e-6 && @printf(" %-8s %10.5f mol\n", comp, v)
end H2O@ 2.92721 mol
SiO2@ 0.30079 mol
Ca+2 0.72156 mol
H+ -1.41367 mol
K+ 0.00809 mol
Mg+2 0.04466 mol
Na+ 0.00307 mol
SO4-2 0.00562 mol
AlO2- 0.10300 mol
FeO2- 0.01568 mol4. The equilibrium
model = HKFActivityModel(å = 0.0, Ḃ = 0.097637, Kₙ = 0.0)
eq, cert = equilibrate_certified(state; model = model, b = b)
@printf("certificate: optimal=%s worst SI=%.2e element balance=%.1e\n",
cert.optimal, cert.worst_supersaturation, cert.balance)
@printf("pH = %.3f\n", pH(eq, model))┌ Warning: Verbosity toggle: missing_second_order_ad
│ The selected optimization algorithm requires second order derivatives, but `SecondOrder` ADtype was not provided. So a `SecondOrder` with AutoForwardDiff() for both inner and outer will be created, this can be suboptimal and not work in some cases so an explicit `SecondOrder` ADtype is recommended.
└ @ OptimizationBase ~/.julia/packages/OptimizationBase/TvAnm/src/cache.jl:116
certificate: optimal=true worst SI=1.00e-10 element balance=8.9e-15

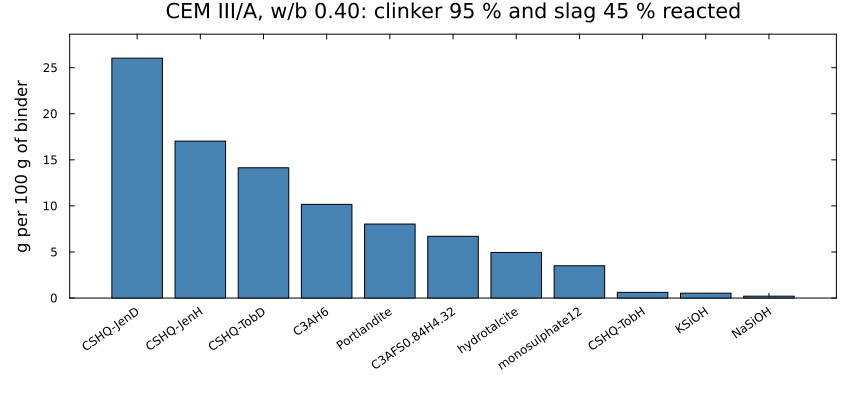

pH = 13.041The assemblage, in moles per 100 g of binder:
n = ustrip.(us"mol", eq.n)
present = sort([(symbol(cs.species[i]), n[i]) for i in cs.idx_crystal if n[i] > 1.0e-4];
by = last, rev = true)
for (name, amount) in present
@printf(" %-18s %9.5f mol\n", name, amount)
end CSHQ-JenD 0.15388 mol
CSHQ-TobD 0.11799 mol
Portlandite 0.10818 mol
CSHQ-JenH 0.09806 mol
C3AH6 0.02688 mol
C3AFS0.84H4.32 0.01567 mol
KSiOH 0.01150 mol
hydrotalcite 0.01117 mol
monosulphate12 0.00562 mol
NaSiOH 0.00552 mol
CSHQ-TobH 0.00492 mol5. The oxidation state, which is the point
A CEM I has no answer to give here: its sulfur is all sulfate, so every couple is degenerate. A CEM III does.
r = half_reaction(eq, "SO4-2", "HS-")
println("half-reaction : ", r.equation)
@printf("log K at 25 C : %.2f\n", r.logK⁰(T = 298.15))
@printf("pe : %+.2f\n", pe(eq, model))
@printf("Eh : %+.3f V\n", Eh(eq, model))
s6 = ustrip(us"mol", moles(eq, "SO4-2"))
s2 = ustrip(us"mol", moles(eq, "HS-"))
@printf("\naqueous S(VI) : %.3e mol\naqueous S(-II) : %.3e mol\n", s6, s2)half-reaction : SO₄²⁻ + 9H⁺ + 8e⁻ = 4H₂O@ + HS⁻
log K at 25 C : 33.69
┌ Warning: `HS-` is at 9.85967654375977e-305 mol, at or near the solver floor, so the SO4-2/HS- couple does not buffer anything here: the `pe` returned is set by the floor `ϵ`, not by the chemistry. Read it as a bound, or choose a couple whose members are both present.
└ @ ChemistryLab ~/work/ChemistryLab.jl/ChemistryLab.jl/src/equilibrium/aqueous_properties.jl:660
pe : -9.34
┌ Warning: `HS-` is at 9.85967654375977e-305 mol, at or near the solver floor, so the SO4-2/HS- couple does not buffer anything here: the `pe` returned is set by the floor `ϵ`, not by the chemistry. Read it as a bound, or choose a couple whose members are both present.
└ @ ChemistryLab ~/work/ChemistryLab.jl/ChemistryLab.jl/src/equilibrium/aqueous_properties.jl:660
Eh : -0.553 V
aqueous S(VI) : 3.950e-07 mol
aqueous S(-II) : 9.860e-305 molRead that output carefully, because it contains a trap the calculation itself warns about. The aqueous sulfide is at the solver's floor — the equilibrium put essentially all of this paste's sulfur into the AFm phase (monosulphate12 above), leaving nothing in solution on either side of the couple.
A couple buffers a potential only while both of its members are present. With one at the floor, the pe printed above is set by the floor ϵ and not by the chemistry, which is why pe emits a warning here rather than returning the number silently. Read it as a bound, not as the redox state of the paste.
That is not a defect of the calculation; it is the answer. A CEM III/A at this sulfur content has no aqueous sulfur to speak of, so it has no sulfur redox buffer either. A cement whose slag brings more sulfur, or a paste carbonated enough to release the AFm sulfate, would.
And even a buffered answer would be an equilibrium answer
Suppose the couple were buffered. The potential would still be what the thermodynamics gives if every redox couple reaches mutual equilibrium, and on the time scale of hydration that is false: sulfate reduction is kinetically frozen, so the sulfur stays closer to what the slag brought than to what equilibrium would make of it.
A real slag paste is therefore somewhere between its initial oxidation state and this one, and nothing in a Gibbs minimization says where. The package can now pose the question; answering it needs a kinetic description of sulfate reduction, which it does not have.
6. The one input that sets the pH
Everything on this page is assumed except the water/binder ratio, the fineness and the calorimetry — and of the assumptions, one dominates the pore solution. The calcium is held at the portlandite floor and cannot rise; what rises above it is the alkalis, which dissolve almost entirely and stay there. So a page that assumes an alkali content owes the reader its sensitivity, and this is it: the same paste with the clinker's Na₂O and K₂O scaled over the industrial range, from a low-alkali cement to a high-alkali one.
i_ch = findfirst(sp -> symbol(sp) == "Portlandite", cs.species)
na2o_eq(scale) = 100 * scale * (ALKALIS["Na2O"] + 0.658 * ALKALIS["K2O"])
@printf("%-14s %10s %11s %8s %13s\n",
"Na2O eq (%)", "certified", "balance", "pH", "portlandite")
# `let` rather than a bare loop: a top-level `for` that assigns to a name of the
# enclosing scope makes a NEW LOCAL, so `prev` would be read before it is ever
# written. Wrapping the sweep gives it a scope of its own, which is cleaner than
# reaching for `global`.
let prev = nothing
for scale in (0.5, 1.0, 1.5)
pa = paste(; alkali = scale)
e, c = equilibrate_certified(something(prev, pa.state);
model = model, b = pa.total)
c.optimal && (prev = e)
nn = ustrip.(us"mol", e.n)
@printf("%-14.2f %10s %11.1e %8.3f %13.5f\n",
na2o_eq(scale), c.optimal, c.balance, pH(e, model), nn[i_ch])
end
endNa2O eq (%) certified balance pH portlandite
┌ Warning: Verbosity toggle: missing_second_order_ad
│ The selected optimization algorithm requires second order derivatives, but `SecondOrder` ADtype was not provided. So a `SecondOrder` with AutoForwardDiff() for both inner and outer will be created, this can be suboptimal and not work in some cases so an explicit `SecondOrder` ADtype is recommended.
└ @ OptimizationBase ~/.julia/packages/OptimizationBase/TvAnm/src/cache.jl:116
0.36 true 4.9e-13 12.795 0.10571
┌ Warning: Verbosity toggle: missing_second_order_ad
│ The selected optimization algorithm requires second order derivatives, but `SecondOrder` ADtype was not provided. So a `SecondOrder` with AutoForwardDiff() for both inner and outer will be created, this can be suboptimal and not work in some cases so an explicit `SecondOrder` ADtype is recommended.
└ @ OptimizationBase ~/.julia/packages/OptimizationBase/TvAnm/src/cache.jl:116
0.73 true 1.9e-15 13.041 0.10818
┌ Warning: Verbosity toggle: missing_second_order_ad
│ The selected optimization algorithm requires second order derivatives, but `SecondOrder` ADtype was not provided. So a `SecondOrder` with AutoForwardDiff() for both inner and outer will be created, this can be suboptimal and not work in some cases so an explicit `SecondOrder` ADtype is recommended.
└ @ OptimizationBase ~/.julia/packages/OptimizationBase/TvAnm/src/cache.jl:116
1.09 true 1.7e-14 13.195 0.11052Read the two right-hand columns against each other. A factor of three on the alkali content moves the pH by 0.40 unit and the portlandite by under 5 %. That separation is the whole point: the calcium is held by portlandite and cannot follow, so in a cement paste the alkalis are the pH and the calcium hydroxide is only a floor beneath them.
The middle row is the page's own case, and it returns the 13.041 of section 4 — which is worth checking rather than assuming, since a sweep that did not reproduce its own nominal point would be measuring something else.
Two consequences for anyone using this page. A pH quoted from it is worth exactly what the assumed alkali content is worth, so substitute your own analysis — the constant is ALKALIS in section 1 and nothing else needs to change. And a durability argument that turns on pore-solution pH — alkali-silica reaction, steel passivation, leaching — cannot be settled by a calculation whose alkali input was assumed. That is not a limitation of the minimization; it is what the minimization is telling you about which measurement to go and make.
7. What the measured calorimetry says, and what it does not
The record gives the heat, and the heat is the one quantity here that was measured rather than assumed. It is worth putting beside the CEM I of the same deposit:
function final_heat(file)
t, Q = 0.0, 0.0
for line in eachline(joinpath(datapath("experimental"), file))
startswith(line, "#") && continue
startswith(line, "time") && continue
f = split(line, ',')
t, Q = parse(Float64, f[1]), parse(Float64, f[3])
end
return t, Q
end
for (file, label) in (
("smilauer2025-122-cemI-52.5R-cizkovice.csv", "CEM I 52.5 R"),
("smilauer2025-184-cemIII-A-42.5N-hranice.csv", "CEM III/A 42.5 N"),
("smilauer2025-121-cemIII-B-32.5N-mokra.csv", "CEM III/B 32.5 N"),
)
t, Q = final_heat(file)
@printf(" %-18s %6.0f h %6.1f J/g\n", label, t, Q)
end CEM I 52.5 R 262 h 376.0 J/g
CEM III/A 42.5 N 359 h 261.2 J/g
CEM III/B 32.5 N 663 h 234.4 J/gReplacing clinker with slag lowers the heat, because every joule comes from the clinker and slag reacts later and less exothermically. That is the property a CEM III is specified for — a massive pour that would crack under the thermal gradient of a CEM I.
What the calculation above does not do is predict that curve. It is an equilibrium: it says what the paste tends to, not how fast. Coupling it to the Waller kinetics that ship for slag is the subject of the coupled runs, and doing it on a blend needs a degree of reaction for the slag that this deposit does not report either.
