The equivalent inclusion method, against a published table
The whole page as one script
Every block of this page, in order, is scripts/93_eim_disk_assembly_2d.jl. From a clone of the repository, julia --project=docs -e 'using Pkg; Pkg.instantiate()' once, then julia scripts/93_eim_disk_assembly_2d.jl, runs it end to end.
Before this page
The equivalent inclusion method, where the variational form and the bounds used below are derived, Particle assemblies and N-body schemes for random assemblies and their boundary conditions, and The cluster model on cubic arrays, whose §5 identifies the two N-body schemes on a periodic array.
The variational form of the equivalent inclusion method (Brisard et al., 2013) is a Galerkin discretization of the weak Lippmann-Schwinger equation. At order p = 0 the polarization is constant over each inclusion and the unknowns solve
Because the method minimizes a Hashin-Shtrikman functional over a finite-dimensional space, the estimate is a rigorous bound whenever the matrix is stiffer (upper) or softer (lower) than every inhomogeneity.
This page reproduces the p = 0 row of their Table 1: plane strain,
using MeanFieldHomogenization
using TensND
using Random
using Statistics
using Printf
using Plots
gr()
default(; left_margin = 5Plots.mm, bottom_margin = 5Plots.mm)
Random.seed!(20260810)Random.TaskLocalRNG()Setting
Plane strain with μ₀ = 1 and ν₀ = 0.3. In two dimensions TensISO{2}(α, β) is
μ₀, ν₀ = 1.0, 0.3
κ₂ = μ₀ / (1 - 2ν₀)
C_m = TensISO{2}(2κ₂, 2μ₀)
C_void = TensISO{2}(2κ₂ * 1.0e-9, 2μ₀ * 1.0e-9)
a, N, R = 1.0, 160, 20.0
@printf "porosity φ = N a² / R² = %.3f\n" N * a^2 / R^2porosity φ = N a² / R² = 0.400One realization
The microstructure is generated by the hard-particle Metropolis algorithm of the paper's §5: the disks start on a regular grid inside the SVE and are then shuffled, the move amplitude being retuned every 50 sweeps to hold the acceptance ratio near 0.3.
rng = Random.MersenneTwister(20260810)
asm = random_assembly(
N, Dict(:C => C_m), Dict(:C => C_void);
radius = a, dim = 2, rng = rng, cycles = 4000,
boundary = MixedBC(Ellipsoid(R, R))
)
println(asm)
println("bound type: ", eim_bound_type(asm))
C = homogenize(asm, EquivalentInclusion(), :C)
@printf "μ_app / μ₀ = %.4f (single realization)\n" canonical_components(C)[1, 2, 1, 2] / μ₀ParticleAssembly(160 particles, MixedBC, f = 0.4)
bound type: upper
μ_app / μ₀ = 0.3050 (single realization)Monte-Carlo over realizations
The published value averages 1000 microstructures; a few dozen already put the statistical error well below the gap to the reference.
nreal = 8 ## reduced ensemble, so the documentation build stays cheap
vals = map(1:nreal) do _
asm_m = random_assembly(
N, Dict(:C => C_m), Dict(:C => C_void);
radius = a, dim = 2, rng = rng, cycles = 4000,
boundary = MixedBC(Ellipsoid(R, R))
)
canonical_components(homogenize(asm_m, EquivalentInclusion(), :C))[1, 2, 1, 2] / μ₀
end
mean_val = mean(vals)
sem = std(vals) / sqrt(length(vals)) # standard error of the mean
@printf "\nEIM (p = 0), %d realizations : μ_app/μ₀ = %.4f ± %.4f\n" length(vals) mean_val sem
@printf "paper (1000 realizations) : 0.310\n"
@printf "finite-element reference : 0.244\n"
@printf "Hashin-Shtrikman upper bound : 0.349\n"
EIM (p = 0), 8 realizations : μ_app/μ₀ = 0.3118 ± 0.0021
paper (1000 realizations) : 0.310
finite-element reference : 0.244
Hashin-Shtrikman upper bound : 0.349Reading the result
The estimate sits between the finite-element value it bounds from above and the Hashin-Shtrikman bound it improves on. Both statements are what the variational structure guarantees: taking the polarization constant and equal across all inclusions recovers Hashin-Shtrikman, and letting it vary from one inclusion to the next can only lower an upper bound.

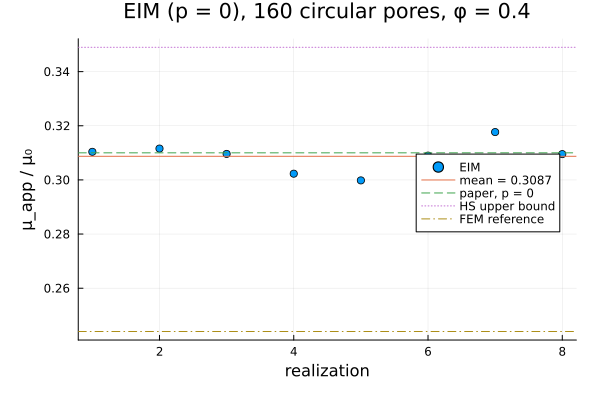

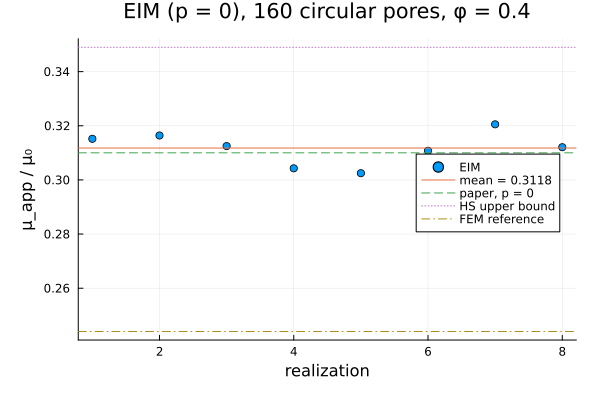

p1 = scatter(
eachindex(vals), vals;
xlabel = "realization", ylabel = "μ_app / μ₀",
title = "EIM (p = 0), $(N) circular pores, φ = 0.4",
label = "EIM", ms = 4, legend = :right
)
hline!(p1, [mean_val]; label = @sprintf("mean = %.4f", mean_val))
hline!(p1, [0.310]; ls = :dash, label = "paper, p = 0")
hline!(p1, [0.349]; ls = :dot, label = "HS upper bound")
hline!(p1, [0.244]; ls = :dashdot, label = "FEM reference")
p1
The microstructure

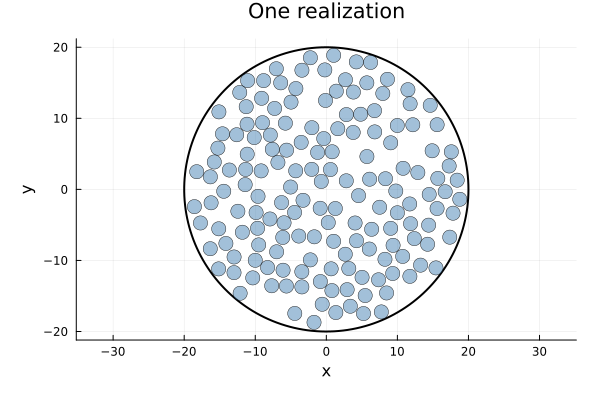

Worth a look: this is the geometry the estimate is computed on — 160 non-overlapping disks inside a circular SVE, not a periodic cell.
θ = range(0, 2π; length = 200)
p2 = plot(
R .* cos.(θ), R .* sin.(θ);
aspect_ratio = 1, color = :black, lw = 2, label = "SVE",
xlabel = "x", ylabel = "y", title = "One realization", legend = false
)
for nm in particle_names(asm)
c = particle_center(asm, nm)
plot!(p2, c[1] .+ a .* cos.(θ), c[2] .+ a .* sin.(θ); seriestype = :shape,
fillalpha = 0.5, lw = 0.4, color = :steelblue, label = "")
end
p2
Effect of the porosity
At fixed SVE size, adding pores drives the apparent modulus down; the EIM estimate stays an upper bound throughout because the matrix is stiffer than every inhomogeneity.
φs = [0.1, 0.2, 0.3, 0.4]
μs = Float64[]
for φ in φs
Nφ = round(Int, φ * R^2 / a^2)
asm_φ = random_assembly(
Nφ, Dict(:C => C_m), Dict(:C => C_void);
radius = a, dim = 2, rng = rng, cycles = 4000,
boundary = MixedBC(Ellipsoid(R, R))
)
push!(μs, canonical_components(homogenize(asm_φ, EquivalentInclusion(), :C))[1, 2, 1, 2] / μ₀)
@printf "φ = %.2f (N = %3d) μ_app/μ₀ = %.4f\n" φ Nφ μs[end]
end
p3 = plot(
φs, μs; marker = :circle, ms = 4,
xlabel = "porosity φ", ylabel = "μ_app / μ₀",
title = "EIM (p = 0) vs porosity", label = "EIM", legend = :topright
)
scatter!(p3, [0.4], [0.310]; ms = 6, marker = :star5, label = "paper, φ = 0.4")
p3
p_full = plot(p1, p2, p3; layout = (1, 3), left_margin = 8Plots.mm, bottom_margin = 8Plots.mm,
size = (1500, 520), titlefontsize = 9)
p_full

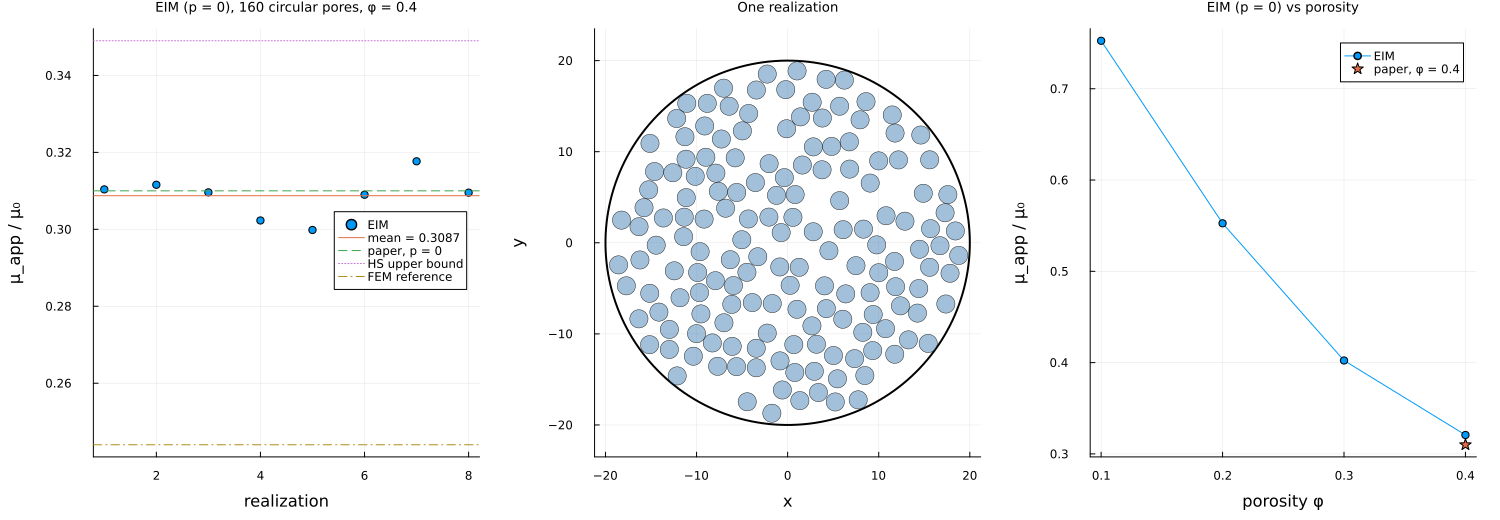

The last figure gathers the three panels above in one row, the published value being drawn as a dashed line on the left and as a star on the right.
