Cracks and crack density

Before this page

The tutorial Hill polarization tensors in practice, whose flattened spheroid is the volume-bearing ancestor of the crack, and the theory page Crack opening displacement and compliance, where the tensor and the compliance contribution used below are derived.

Cracks are inclusions with zero volume — a pore flattened to a surface. MeanFieldHomogenization handles them with the same RVE/ homogenize machinery as ordinary inclusions, but parameterized by crack density instead of volume fraction, and characterized by a crack-opening-displacement (COD) tensor rather than an Eshelby tensor.

The crack-opening-displacement tensor

For a flat crack in an infinite matrix , the displacement jump across the crack faces under remote stress is linear in that stress through the COD tensor B:

using MeanFieldHomogenization
using TensND
using LinearAlgebra
using Plots
gr()  # headless backend; GKSwstype is set to "100" in make.jl

E, ν = 30.0, 0.2
k_m, μ_m = E / (3 * (1 - 2ν)), E / (2 * (1 + ν))
C0 = iso_stiffness(k_m, μ_m)

pc = PennyCrack(1.0)
B = cod_tensor(pc, C0)
B[3, 3]   # normal-opening component, crack-local frame

0.05432488724203361

B depends only on the matrix stiffness and the crack's shape (circular penny, elliptic, or ribbon) — not on its size, which enters separately through the crack density.

From size to density: the compliance contribution

A single crack contributes an increment to the macroscopic compliance proportional to its size. For a population of non-interacting penny cracks per unit volume, each of radius , the (dimensionless) crack density is   (Budiansky–O'Connell), and the dilute compliance correction is

Kachanov (1992), Kachanov (1993) — is the size-independent compliance contribution tensor (inverse_property_contribution), computed once from B and the crack normal , and reused unchanged across an entire crack population that shares the same orientation and shape.

H = inverse_property_contribution(pc, C0)
ΔS = delta_inverse_property(pc, H, 0.05)   # ε = 0.05

Cracks in an RVE — the density keyword

Rather than assembling ΔS by hand, add_phase! accepts a crack geometry with a density keyword in place of fraction; the scheme machinery then computes the appropriate contribution internally for whichever scheme is requested:

function build(ρ)
    r = RVE(; distribution_shape = Ellipsoid(1.0))
    add_phase!(r, :M, Ellipsoid(1.0), Dict(:C => C0); fraction = :rest)
    add_phase!(r, :CRACK, PennyCrack(1.0), Dict(:C => C0); density = ρ, symmetrize = IsoSymmetrize())
    return r
end
crack_density(build(0.05), :CRACK)

0.05

symmetrize = IsoSymmetrize() declares a uniform spatial distribution of crack orientations (see the porous benchmark tutorial for the same keyword on ordinary inclusions), so the macroscopic effect of an isotropically-oriented crack population is itself isotropic.

Note: SelfConsistent does not support cracks (its strain-concentration tensor becomes singular for zero-volume inclusions); use AsymmetricSelfConsistent instead. See the cracks manual page for the full API, including finite interface stiffness (Sevostianov springs).

Effective modulus vs. crack density

ρs = collect(range(0.0, 0.3; length = 20))
schemes = [
    (MoriTanaka(), "MoriTanaka", :black),
    (AsymmetricSelfConsistent(; select_best = true), "AsymmetricSelfConsistent", :purple),
    (DifferentialScheme(; nsteps = 100), "Differential", :orange),
    (PonteCastanedaWillis(), "PCW", :green),
]

plt = plot(;
    xlabel = "crack density ρ", ylabel = "k_eff",
    legend = :bottomleft, framestyle = :box, size = (760, 480),
)
for (sch, label, color) in schemes
    ks = [k_mu(best_fit_iso(homogenize(build(ρ), sch, :C)))[1] for ρ in ρs]
    plot!(plt, ρs, ks; label = label, color = color, lw = 2)
end
plt

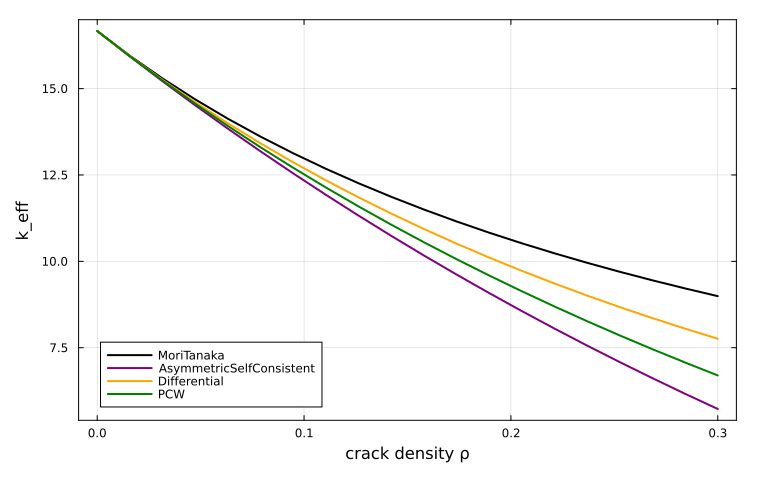

Stiffness decreases monotonically with crack density for every scheme, as expected — but at different rates: AsymmetricSelfConsistent degrades fastest because it lets cracks interact through a softening effective medium, exactly as the self-consistent porous estimate did in an earlier tutorial. Crack density plays the same qualitative role here that porosity played there; what differs is the shape (a surface rather than a volume) entering the concentration tensor.

Where to go next

The above is built from by the factor proved on the theory page. Two routes to a crack computes it independently, from the Hill tensor of a flattening ellipsoid, and checks that factor in anisotropic matrices. The cracks above are averaged over all orientations. Crack distributions: isotropic or parallel compares that rule with a family of parallel cracks at the same density, and follows both self-consistent forms to their percolation thresholds. The crack shapes, the density keyword and the opening laws other than the free crack are documented in Cracks of the manual.
